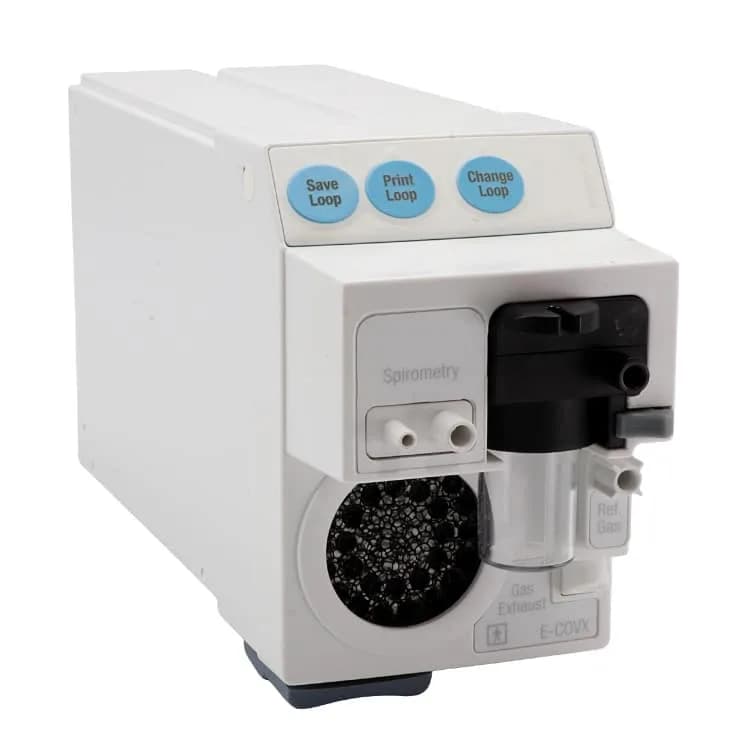

E-CO, E-CaiO, E-CaiOv - Gas Module - Double Wide
Model Number: E-CO, E-CaiO, E-CaiOv
Device✓ 1 in stock
The GE E-CAIO series is a double-wide gas analysis module for use with GE patient monitors equipped with compatible module racks (external or internal). The module measures oxygen (O2), nitrous oxide (N2O), and carbon dioxide (CO2); the E-CaiOv variant adds spirometry capability,…
Overview
The GE E-CAIO series is a double-wide gas analysis module for use with GE patient monitors equipped with compatible module racks (external or internal). The module measures oxygen (O2), nitrous oxide (N2O), and carbon dioxide (CO2); the E-CaiOv variant adds spirometry capability, and the E-CaiO and E-CaiOv variants can also identify and measure anesthetic agent gases. The module samples gas at 200 ml/min via a 3-meter sample line connected to the patient circuit or breathing system. Output displays measured gas concentrations on the monitor screen. Configuration options: - E-CO: O2, N2O, CO2 measurement - E-CaiO: O2, N2O, CO2, and agent gas measurement - E-CaiOv: O2, N2O, CO2, agent gas, and spirometry
Tech Info
- Flow rate: 200 ml/min +/- 20 ml/min
- Sample line length: 3 meters (required for flow-rate verification)
- Calibration gas: 755571-HEL (5% CO2, 54.5% O2, 36.0% N2O, 2% desflurane)
- Module width: Double-wide format for GE module rack systems
Annual preventive maintenance and checkout required. CO2 scrubber replacement required every four years (not included in standard PM kit).
Common Problems
- Sensor failure or inoperability
- Pump failure
- Bench failure
- Pneumatic assembly occlusion causing flow rate errors
- CO2 scrubber degradation (requires replacement every four years as part of service cycle)
- Calibration drift
Specifications
- Flow Rate
- 200 ml/min +/- 20 ml/min
- Module Width
- Double-wide
- Calibration Gas
- 755571-HEL
- Sample Line Length
- 3 meters
- Measured Parameters
- O2, N2O, CO2 (all models); agent gas (E-CaiO, E-CaiOv); spirometry (E-CaiOv)
