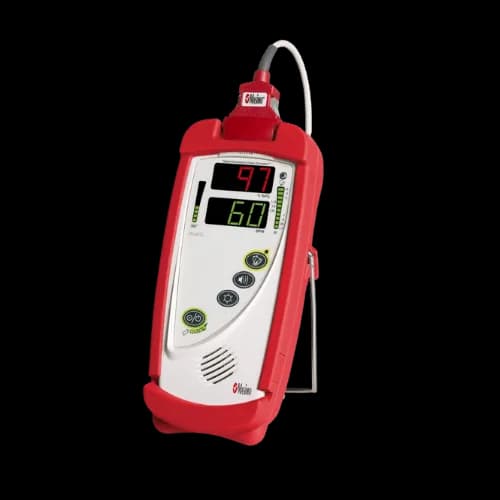

Masimo Rad-5 SPO2/RESP Portable Monitor
Model Number: Rad-5V
Device✓ 1 in stock
The Masimo Rad-5V is a portable pulse oximetry monitor in Masimo's Rad series. It displays SpO₂ saturation, pulse rate, perfusion index (PI), and Signal IQ on a multicolor LED screen, drawing power from four AA alkaline batteries for extended field use. The unit is sized for hand…
Overview
The Masimo Rad-5V is a portable pulse oximetry monitor in Masimo's Rad series. It displays SpO₂ saturation, pulse rate, perfusion index (PI), and Signal IQ on a multicolor LED screen, drawing power from four AA alkaline batteries for extended field use. The unit is sized for handheld operation and includes battery-status indication. Clinical users deploy it for continuous or spot-check oxygen saturation monitoring in transport, clinic, or bedside settings where a compact, battery-powered sensor is preferred. - Four AA alkaline battery power (30+ hours continuous operation) - Multicolor LED display with Signal IQ indicator - Portable form factor (7.8 x 3.8 x 3.5 inches, 1.3 lbs without batteries)
Tech Info
- Display: Multicolor LED (SpO₂, pulse rate, PI, Signal IQ, battery status)
- SpO₂ Accuracy: ±2% (saturation range 70–100%)
- Pulse Rate Accuracy: ±3 bpm (range 25–240 bpm)
- Dimensions: 7.8 x 3.8 x 3.5 inches (200 x 97 x 90 mm)
- Weight: 1.3 lbs without batteries (0.6 kg)
- Power: Four AA alkaline batteries
- Battery Life: 30+ hours continuous operation
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Operating Humidity: 15–95% non-condensing
- Altitude Range: -500 to 3,000 meters (-1,640 to 9,843 feet)
Common Problems
- Power failure or weak display: battery depletion or poor battery contact; replace AA batteries and verify docking connector seating.
- Docking connector damage: corrosion or bent pins from repeated insertion or exposure to moisture; inspect connector for debris or oxidation.
- SpO₂ reading errors or dropout: poor sensor contact, patient motion, low perfusion, or internal calibration drift; verify finger placement and Signal IQ indicator.
Specifications
- Model
- Rad-5V
- Weight
- 1.3 lbs without batteries
- Dimensions
- 7.8 x 3.8 x 3.5 inches
- Battery Life
- 30+ hours continuous
- Display Type
- Multicolor LED
- Manufacturer
- Masimo
- Power Source
- Four AA alkaline batteries
- SpO2 Accuracy
- ±2% (70–100% saturation)
- Altitude Range
- -500 to 3,000 meters
- Operating Humidity
- 15–95% non-condensing
- Pulse Rate Accuracy
- ±3 bpm (25–240 bpm)
- Storage Temperature
- -4°F to 158°F
- Operating Temperature
- 32°F to 104°F
