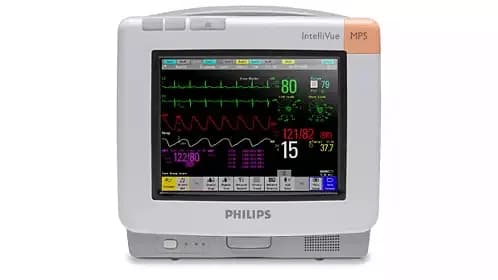

IntelliVue MP5 Monitor
Model Number: M8105A, M8105AS
Device✓ 1 in stock
The Philips IntelliVue MP5 (M8105A, M8105AS) is a compact, transport-capable patient monitor that displays ECG, SpO₂, NIBP, respiration rate, and temperature from parameter modules. It features an 8.4-inch color touchscreen display with customizable waveform and trend layouts, co…
Overview
The Philips IntelliVue MP5 (M8105A, M8105AS) is a compact, transport-capable patient monitor that displays ECG, SpO₂, NIBP, respiration rate, and temperature from parameter modules. It features an 8.4-inch color touchscreen display with customizable waveform and trend layouts, controlled via touch input. The monitor receives vital-sign signals from plug-in parameter modules and supports optional CO₂ and invasive pressure measurements. It integrates with IntelliVue Clinical Network infrastructure for central monitoring and EMR data exchange over LAN, USB, or RS-232; wireless connectivity is optional. The rechargeable lithium-ion battery supports up to 4 hours of runtime for intra-hospital transport. Configuration options include: - 3-lead or 5-lead ECG acquisition with arrhythmia detection - SpO₂ via Philips FAST or Masimo sensors - NIBP in adult, pediatric, and neonatal modes - Mounting choices: bed rail, wall, or rolling stand - Optional wireless capability
Tech Info
- Display: 8.4" color TFT LCD
- Weight: Approx. 3 kg (6.6 lbs)
- Battery: Rechargeable Li-ion, up to 4 hours runtime
- ECG: 3-lead or 5-lead with arrhythmia detection
- SpO₂ Options: Philips FAST or Masimo
- NIBP: Oscillometric; adult, pediatric, neonatal modes
- Connectivity: LAN, USB, RS-232; wireless optional
- Mounting: Bed rail, wall, rolling stand options
- Standards: FDA, CE Marked, ISO compliant
Common Problems
- Monitor does not power on
- LCD screen display failure
- Touchscreen unresponsive or scratched
- Battery fails to hold charge or depletes prematurely
- NIBP acquisition or cuff cycle failure
- Parameter module connector loose or unseated
- Parameter module is defective or not recognized
Specifications
- Model
- M8105A, M8105AS
- Weight
- 3 kg
- ECG Leads
- 3-lead or 5-lead
- NIBP Modes
- Adult, pediatric, neonatal
- Battery Type
- Rechargeable Li-ion
- Connectivity
- LAN, USB, RS-232, optional wireless
- Display Size
- 8.4 inch
- Display Type
- Color TFT LCD
- Certifications
- FDA, CE Marked, ISO compliant
- Battery Runtime
- Up to 4 hours
