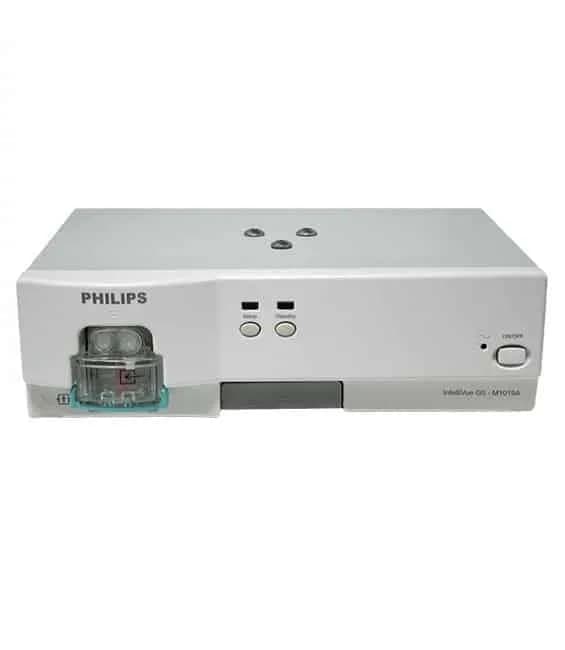

M1019A, M1013A - G5 Gas Module
Model Number: M1019A, M1013A
Device✓ 1 in stock
The Philips M1013A and M1019A are anesthetic gas modules for the MP and MX series patient monitors. They measure end-tidal concentrations of CO2, O2, N2O, and anesthetic agent gases via a pneumatic sampling line (nominal flow 200 ml/min). The module requires monitor software vers…
Overview
The Philips M1013A and M1019A are anesthetic gas modules for the MP and MX series patient monitors. They measure end-tidal concentrations of CO2, O2, N2O, and anesthetic agent gases via a pneumatic sampling line (nominal flow 200 ml/min). The module requires monitor software version D.0 or higher. The M1013A/M1019A is a smaller form factor compared to the earlier M1026B gas module. Annual preventive maintenance and checkout procedures are recommended per Philips guidelines.
Tech Info
- Gas Parameters: CO2, O2, N2O, anesthetic agent (desflurane).
- Sampling Flow: 200 ml/min ± 20.
- Expected Accuracy (End-Tidal): Desflurane 2.00% ± 0.5%, CO2 5.00% ± 0.7%, N2O 43% ± 6.2%, O2 50% ± 3%.
- Software Requirement: Monitor software level D.0 or higher.
- Compatible Monitors: MP series, MX series Philips patient monitors.
Leak testing and checkout procedures are documented in the service manual.
Common Problems
- Low or unstable CO2 readings.
- Occlusion in the sampling line or gas circuit.
- Pneumatic pump fails to activate or run.
- Module remains in warmup mode and does not transition to measurement.
- O2 readings lower than expected or inconsistent.
Specifications
- Model
- M1013A, M1019A
- O2 Accuracy
- 50% ± 3%
- CO2 Accuracy
- 5.00% ± 0.7%
- N2O Accuracy
- 43% ± 6.2%
- Gas Parameters
- CO2, O2, N2O, desflurane
- Sampling Flow Rate
- 200 ml/min ± 20
- Desflurane Accuracy
- 2.00% ± 0.5%
- Minimum Software Version
- D.0
- Compatible Monitor Series
- MP, MX
