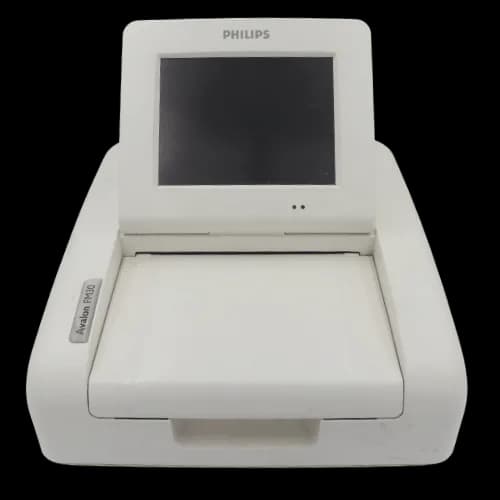

M2703A - FM30 Fetal Monitor
Model Number: M2703A
Device✓ 1 in stock
The Philips M2703A is a fetal monitor from Philips' Avalon series, designed for obstetric monitoring in labor and delivery settings. It displays up to three simultaneous fetal heart rates alongside maternal vital signs (SpO2 and NIBP) on a movable LCD screen. The monitor accommod…
Overview
The Philips M2703A is a fetal monitor from Philips' Avalon series, designed for obstetric monitoring in labor and delivery settings. It displays up to three simultaneous fetal heart rates alongside maternal vital signs (SpO2 and NIBP) on a movable LCD screen. The monitor accommodates both wired and wireless fetal transducers via built-in parameter connectors, and includes Philips I/O slots for flexible module configuration. The compact form factor and adjustable display support bedside and transport use. - Wired and wireless transducer support - Built-in maternal parameter monitoring (SpO2, NIBP) - Movable display - Philips I/O slots for modular expansion
Tech Info
- Model: M2703A
- Display: Movable LCD screen
- Fetal Heart Rate Channels: Up to 3 simultaneous signals
- Maternal Parameters: SpO2, NIBP
- Transducer Support: Wired and wireless
- Expansion: Philips I/O slots
Default service passwords: Configuration Mode (71034), Demo Mode (14432), Service Mode (1345), Master Password (4630).
Common Problems
- Monitor fails to boot or enters continuous power cycling.
- LCD touch screen becomes unresponsive or stops displaying.
- Fetal recorder fails to capture or playback stored tracings.
Specifications
- Model
- M2703A
- Display Type
- Movable LCD
- Expansion Interface
- Philips I/O slots
- Maternal Parameters
- SpO2, NIBP
- Fetal Heart Rate Channels
- Up to 3
- Transducer Types Supported
- Wired and wireless
