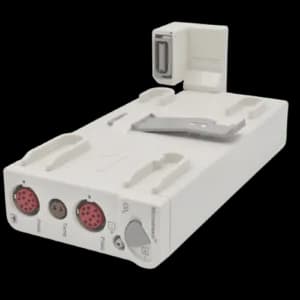

M3015B - CO2 Extension Intellivue Module
Model Number: M3015B
Device✓ 1 in stock
The Philips M3015B is a CO2 extension module for the IntelliVue patient monitor series. It is not a standalone device and must be connected to an IntelliVue monitor (MMS, X2, MP2, MMX, or X3) via an MSL connector. The module receives sidestream CO2 measurement, dual pressure, and…
Overview
The Philips M3015B is a CO2 extension module for the IntelliVue patient monitor series. It is not a standalone device and must be connected to an IntelliVue monitor (MMS, X2, MP2, MMX, or X3) via an MSL connector. The module receives sidestream CO2 measurement, dual pressure, and temperature from a connected patient parameter module. The M3015B is used to extend CO2 monitoring capability in clinical settings where the monitor's built-in CO2 input is unavailable or additional monitoring is required. Configuration depends on the host monitor model and firmware version.
Tech Info
- Connectors: MSL connector to monitor, patient module connection
- Measured parameters: Sidestream CO2, dual pressure, temperature
- Compatible monitors: Philips IntelliVue MMS, X2, MP2, MMX, X3
Refer to Philips_867041 M3015A M3015B_CheckOutProcedure.pdf for service and configuration guidance.
Common Problems
- No communication between module and monitor.
- Software incompatibility with host monitor.
- Sidestream CO2 occlusion or blockage.
- Sidestream CO2 leak test failure.
- CO2 sensor or measurement equipment malfunction.
- Power supply failure or loss of power to module.
- Parameter not displayed on monitor screen (parameter blanked out).
- Parameter connector damaged or corroded.
Specifications
- Model
- M3015B
- Module Type
- CO2 extension
- Manufacturer
- Philips
- Monitor Interface
- MSL connector
- Measured Parameters
- Sidestream CO2, dual pressure, temperature
