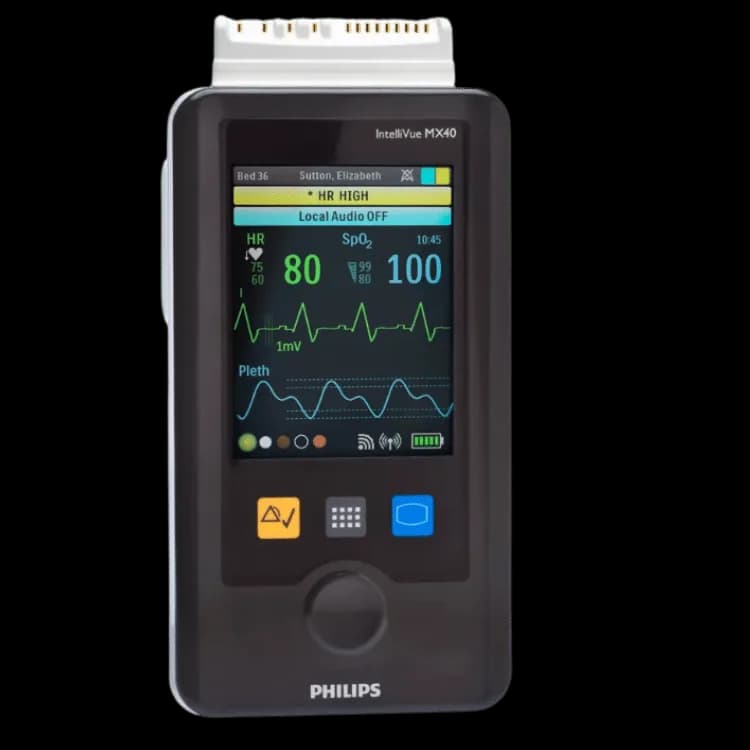

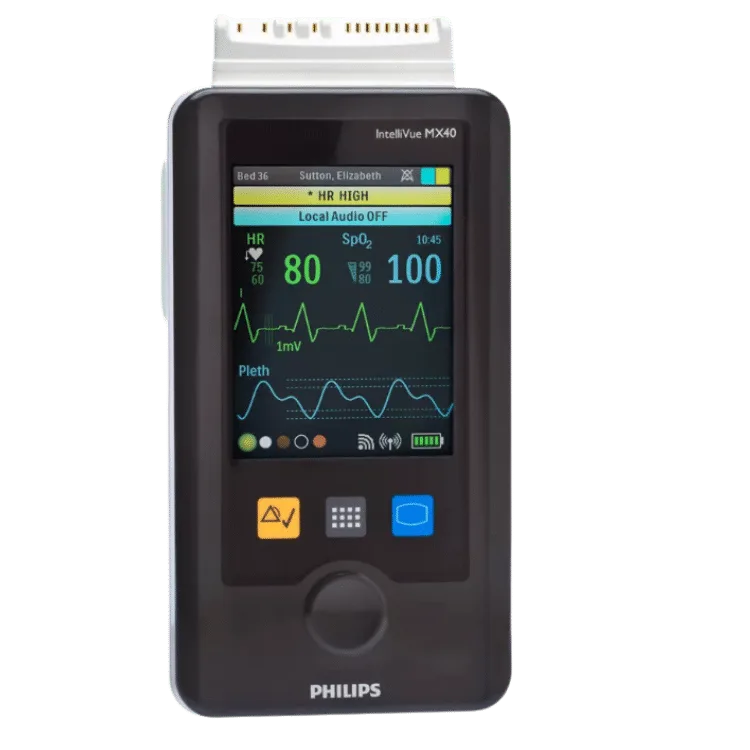

Philips MX40 Telemetry Pack 1.4
Model Number: 865350
Device✓ 1 in stock
The Philips MX40 Telemetry Pack 1.4 is a wearable cardiac telemetry transmitter for continuous ECG monitoring in step-down, telemetry, and ambulatory care settings. The unit receives ECG signals in 3-, 5-, or 6-lead configurations and displays real-time waveforms, heart rate, and…
Overview
The Philips MX40 Telemetry Pack 1.4 is a wearable cardiac telemetry transmitter for continuous ECG monitoring in step-down, telemetry, and ambulatory care settings. The unit receives ECG signals in 3-, 5-, or 6-lead configurations and displays real-time waveforms, heart rate, and signal quality on a 2.8-inch color touchscreen. It transmits data wirelessly to Philips IntelliVue central stations over hospital-grade WLAN infrastructure (802.11 a/b/g/n) and supports HL7 network compatibility. The pack measures 5.1 by 2.9 by 1.2 inches and weighs approximately 0.5 lbs with battery installed, allowing patients to ambulate freely during monitoring. It includes local alarm settings, event annotation, and lead-fail detection that alerts staff to disconnected or loose leads. Optional parameters include SpO2 and impedance respiration. - Rechargeable or disposable battery (up to 18 hours runtime) - 2.8-inch color capacitive touchscreen - Lanyard, belt clip, or garment pouch mounting - Smooth, wipeable surfaces for infection control - IEC/EN60601-1 certified, FDA-cleared, CE marked
Tech Info
- Display: 2.8-inch color capacitive touchscreen
- Measured Parameters: ECG (3/5/6-lead), SpO2 (optional), respiration (optional)
- Battery: Rechargeable or disposable (model dependent)
- Battery Life: Up to 18 hours with standard use
- Connectivity: WLAN (802.11 a/b/g/n), HL7 and IntelliVue network compatible
- Weight: Approx. 0.5 lbs (including battery)
- Dimensions: 5.1 by 2.9 by 1.2 inches
- Mounting: Lanyard, belt clip, or patient garment pouch
- Compliance: IEC/EN60601-1 certified, FDA-cleared, CE marked
Common Problems
- Lead pins corroded or damaged; inspect gold pins for oxidation or physical damage.
- Blank screen while unit is powered and audible; press and hold the blue Main Screen button and dark circle Multi-function button for several seconds to wake the display.
- Battery fails to hold charge or battery tray shows signs of liquid damage; inspect battery compartment and underside of battery tray.
- Speaker produces no sound or distorted audio.
- Cracked or damaged display screen.
- Cracked or damaged case housing.
- Lead set assignment generates error messages on central station; remove lead set from unit before assigning labels.
Specifications
- Model
- 865350
- Weight
- Approx. 0.5 lbs (including battery)
- Display
- 2.8-inch color capacitive touchscreen
- Compliance
- IEC/EN60601-1 certified, FDA-cleared, CE marked
- Dimensions
- 5.1 by 2.9 by 1.2 inches
- Battery Life
- Up to 18 hours
- Connectivity
- WLAN (802.11 a/b/g/n), HL7 and IntelliVue compatible
- Manufacturer
- Philips
- Mounting Options
- Lanyard, belt clip, or patient garment pouch
- Measured Parameters
- ECG (3/5/6-lead), SpO2 (optional), respiration (optional)
