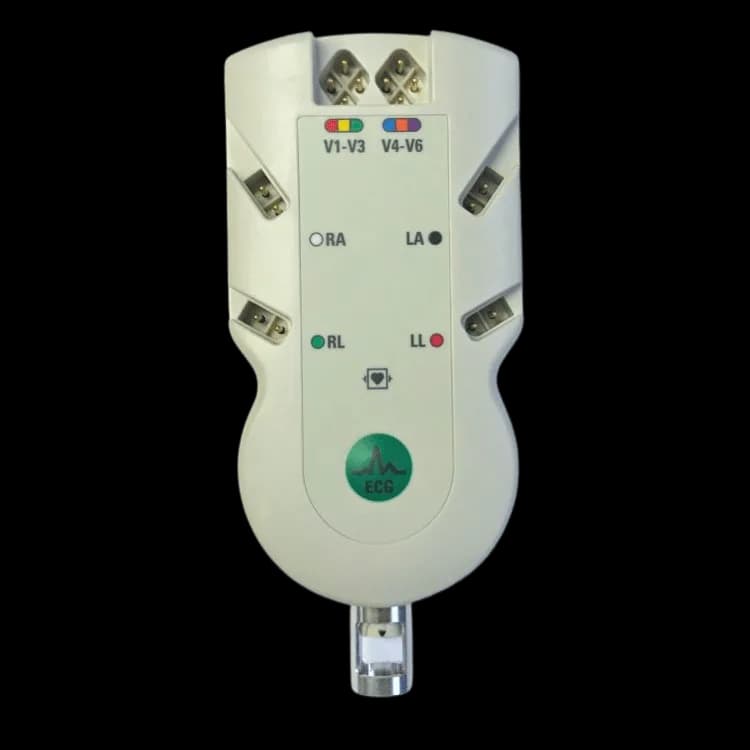

Philips Pagewriter TC 12 Lead Patient Interface Module (PIM)
Model Number: 453564150741, 453564078321, 453564078291
Device✓ 1 in stock
The Philips Pagewriter TC 12-Lead Patient Interface Module (PIM) is a parameter module for Philips PageWriter TC series cardiographs. It acquires 12-lead ECG data at 5 µV resolution and 8,000 samples per second per lead, then transmits the signal to the host cardiograph for displ…
Overview
The Philips Pagewriter TC 12-Lead Patient Interface Module (PIM) is a parameter module for Philips PageWriter TC series cardiographs. It acquires 12-lead ECG data at 5 µV resolution and 8,000 samples per second per lead, then transmits the signal to the host cardiograph for display and recording. The module installs in the dedicated PIM slot on the TC30, TC50, or TC70 host unit and connects to standard TC-series lead cables (H23 long-lead sets, H22 class-A cables). The faceplate can be wiped clean with hospital-grade disinfectants.
Tech Info
- Resolution: 5 µV
- Sampling rate: 8,000 samples/s per lead
- Leads: 12
- Compatible hosts: PageWriter TC30, TC50, TC70
- Compatible cables: H23 long-lead sets, H22 class-A cables
- Connection: Secures into the PIM slot on the cardiograph host
- Cleaning: Wipe-clean with hospital-grade disinfectants
Common Problems
- Physical damage to the module housing or electrode contacts.
- Connector damage or corrosion at the PIM slot interface.
Specifications
- Leads
- 12
- Resolution
- 5 µV
- Module Type
- 12-Lead PIM
- Sampling Rate
- 8,000 samples/s per lead
- Compatible Cables
- H23 long-lead sets, H22 class-A cables
- Compatible Models
- PageWriter TC30, TC50, TC70
