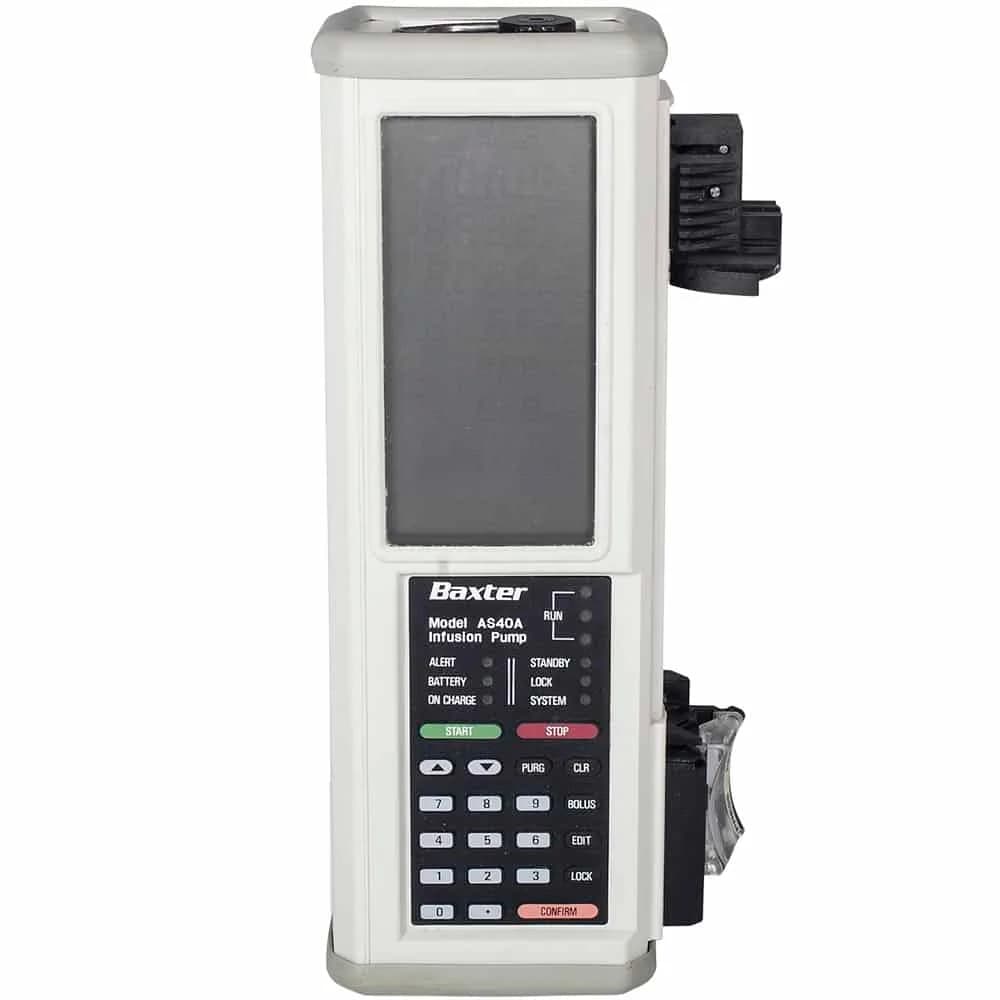

Baxter AS40A
Device✓ 1 in stock
The Baxter AS40A is a syringe infusion pump designed for continuous delivery of medications and fluids. It accepts syringes ranging from 10 mL to 60 mL and delivers fluid at rates from 0.01 to 438 mL/hr (rate varies by syringe size). The operator programs the volume to be infused…
Overview
The Baxter AS40A is a syringe infusion pump designed for continuous delivery of medications and fluids. It accepts syringes ranging from 10 mL to 60 mL and delivers fluid at rates from 0.01 to 438 mL/hr (rate varies by syringe size). The operator programs the volume to be infused (VTBI) up to 999.9 mL on a digital display controlled by a keypad. The pump runs on AC power or an internal battery (approximately 6 hours runtime) and triggers alarms for occlusion, near-end infusion, infusion completion, system error, and low battery. Configurable options: - AC adapter or battery operation - Programmable VTBI and flow rate
Tech Info
- Pump Type: Syringe infusion pump
- Infusion Mode: Continuous
- Syringe Sizes: 10 mL to 60 mL
- Flow Rate Range: 0.01–438 mL/hr (depending on syringe size)
- Accuracy: ±3%
- VTBI (Volume to Be Infused): Programmable up to 999.9 mL
- Alarms: Occlusion, near end, end of infusion, system error, low battery
- Power: AC adapter or internal battery
- Battery Life: Approximately 6 hours under normal use
- Display: Digital display with keypad interface
- Dimensions: 4.5" H × 10.5" W × 8.0" D
- Weight: 6.5 lbs
Common Problems
- Fuse failure
- Barrel damage or wear (check barrel)
- Plunger damage or wear (check plunger)
- Syringe size mismatch with loaded configuration
- L00027 error code
Specifications
- VTBI
- Up to 999.9 mL
- Weight
- 6.5 lbs
- Accuracy
- ±3%
- Pump Type
- Syringe infusion pump
- Dimensions
- 4.5" H × 10.5" W × 8.0" D
- Battery Life
- Approximately 6 hours
- Syringe Sizes
- 10 mL to 60 mL
- Flow Rate Range
- 0.01–438 mL/hr
