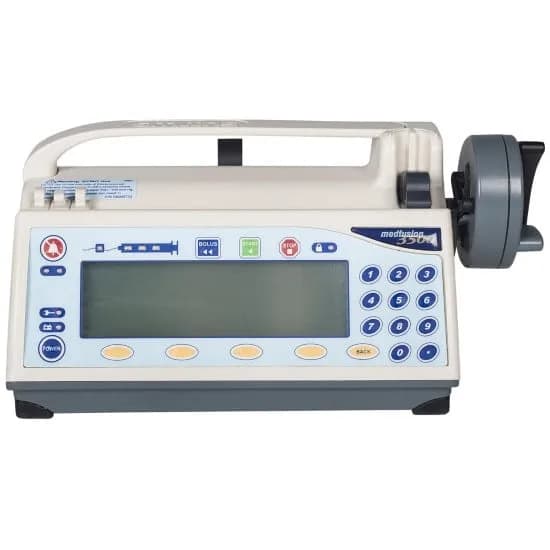

Medfusion 3500
Device✓ 1 in stock
The Smiths Medfusion 3500 is a syringe infusion pump designed for continuous and intermittent medication delivery. It accepts syringes ranging from 1 mL to 60 mL and delivers medication at flow rates from 0.01 mL/hr to 1130 mL/hr with +/- 2% accuracy. The pump supports continuous…
Overview
The Smiths Medfusion 3500 is a syringe infusion pump designed for continuous and intermittent medication delivery. It accepts syringes ranging from 1 mL to 60 mL and delivers medication at flow rates from 0.01 mL/hr to 1130 mL/hr with +/- 2% accuracy. The pump supports continuous infusion, volume/time, mass-based, weight-based, intermittent, and bolus delivery modes. It is powered by an internal battery rated for 10 hours at 25°C when infusing at 5.0 mL/hr with a 60 mL syringe. The pump includes audio and visual alarms for occlusion, near-empty, and system faults. It mounts to an I.V. pole, infant isolette, or radiant warmer with rotation adjustment.
Tech Info
- Pump Type: Smart Syringe Infusion Pump
- Flow Rate Range: 0.01 mL/hr to 1130 mL/hr
- Flow Rate Accuracy: +/- 2%
- Syringe Sizes Accepted: 1 mL, 3 mL, 5 mL, 10 mL, 20 mL, 30 mL, 60 mL
- Delivery Modes: Continuous, Volume/Time, Mass, Body Weight, Intermittent, Bolus
- Battery Life: 10 hours at 25°C infusing at 5.0 mL/hr with 60 mL syringe
- Mounting: I.V. pole, infant isolette, radiant warmer (rotatable)
Common Problems
- Motor does not run.
- Motor rate error.
- Occlusion alarm does not sound or sounds intermittently (primary audible alarm component failure).
- Super capacitor post corrosion or failure.
- Force sensor bridge test failure.
- Clutch or plunger mechanical binding or wear.
Specifications
- Pump Type
- Smart Syringe Infusion Pump
- Battery Life
- 10 hours at 25°C (5.0 mL/hr, 60 mL syringe)
- Syringe Sizes
- 1, 3, 5, 10, 20, 30, 60 mL
- Delivery Modes
- Continuous, Volume/Time, Mass, Body Weight, Intermittent, Bolus
- Flow Rate Range
- 0.01 mL/hr to 1130 mL/hr
- Flow Rate Accuracy
- +/- 2%
