Prescott's Wall Mount Microscope

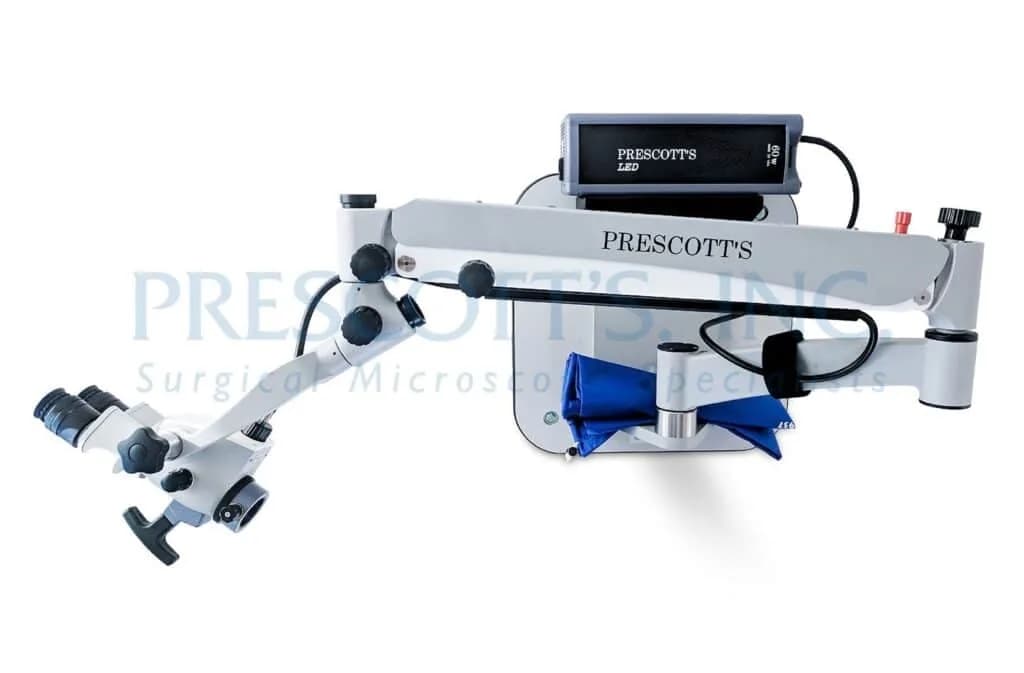

The Prescott Wall Mount Microscope is a stationary examination microscope designed for clinical and laboratory environments. The unit mounts directly to a wall via an articulating arm with approximately 36 inches of horizontal reach, positioning the optics over a fixed work surface. Illumination is provided by a coaxial LED light source with adjustable intensity and a 50,000-hour design life. The magnification system uses manual step changers (3-step or 5-step configurations available), and the standard objective lens offers a 250 mm focal length with working distances of 200–300 mm depending on the installed lens. A C-mount port enables attachment of digital cameras or other imaging sensors for documentation or remote viewing. Configuration options include: - Objective lens focal length (standard 250 mm; optional 200–300 mm range) - Eyepiece magnification (standard 10x widefield; optional 12.5x) - Magnification steps (3-step or 5-step manual changer)
