Sigma Spectrum
Device✓ 1 in stock

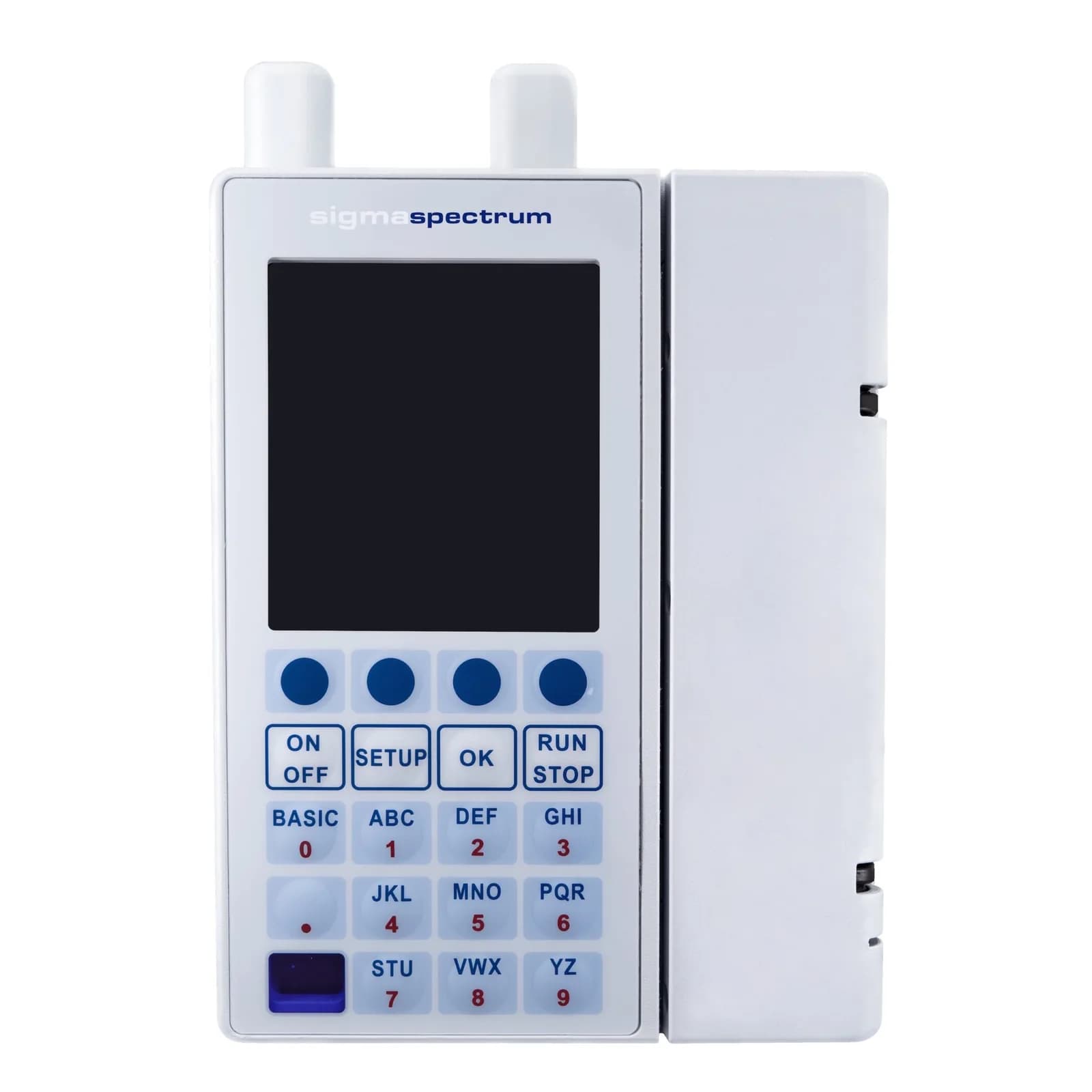

The Baxter Sigma Spectrum is a large-volume infusion pump designed for hospital, acute care, and specialty therapy delivery. It receives infusion orders via a color LCD display and delivers fluid or medication through Baxter proprietary IV sets at programmed rates from 0.5 to 999…
Overview
The Baxter Sigma Spectrum is a large-volume infusion pump designed for hospital, acute care, and specialty therapy delivery. It receives infusion orders via a color LCD display and delivers fluid or medication through Baxter proprietary IV sets at programmed rates from 0.5 to 999 mL/hr. The pump supports continuous, intermittent, and titration delivery modes and includes an integrated drug library (up to 1200 entries) with built-in dose error reduction (DERS) and customizable safety limits. Wireless connectivity (802.11) and wired options (USB, Ethernet) enable EMR integration and remote software updates. Event logging captures infusion data and alarms for clinical review. The pump is powered by an integrated lithium-ion battery with approximately 6 hours of runtime and charges via AC power. Key configurations: - Guardrails safety software with customizable dose limits - Wireless connectivity for fleet-wide updates and real-time integration - Built-in alarms for occlusion, air-in-line, low battery, and infusion completion - Integrated battery (no external removable battery)
Tech Info
- Flow Rate Range: 0.5 to 999 mL/hr
- Delivery Modes: Continuous, intermittent, titration
- Accuracy: ±5%
- Display: Color graphic LCD
- Drug Library Capacity: Up to 1200 entries
- Battery: Integrated lithium-ion, charges via AC power
- Battery Runtime: Approximately 6 hours (typical use)
- Connectivity: Wireless (802.11), wired (USB, Ethernet)
- Alarms: Occlusion, air-in-line, low battery, infusion complete, door open
- Dimensions: Approx. 9.3" H × 6.2
Common Problems
- Error 105: Clean load point 2, remove slide clamp, and close door to clear.
- LCD display failure or dim backlight.
- Battery fails to hold charge below 6 hours of typical runtime.
- Occlusion or air-in-line alarm triggers without obvious blockage or air.
Specifications
- Depth
- Approx. 2.2"
- Width
- Approx. 6.2"
- Height
- Approx. 9.3"
- Weight
- Approx. 2.5 lbs
- Battery
- Integrated lithium-ion
- Display
- Color graphic LCD
- Accuracy
- ±5%
- Pump Type
- Large-volume infusion pump
- Connectivity
- Wireless (802.11), wired (USB, Ethernet)
- Infusion Sets
- Baxter proprietary IV sets
- Delivery Modes
- Continuous, intermittent, titration
- Battery Runtime
- Approximately 6 hours (typical use)
- Flow Rate Range
- 0.5 to 999 mL/hr
- Drug Library Capacity
- Up to 1200 entries
