Smiths Medical CADD Prizm PCS II 6101
Device✓ 1 in stock
The Smiths Medical CADD Prizm PCS II 6101 is an ambulatory patient-controlled analgesia (PCA) infusion pump designed for portable pain management. It delivers medication via PCA, continuous, intermittent, or combination modes at flow rates from 0.1 to 250 mL/hr, depending on the …
Overview

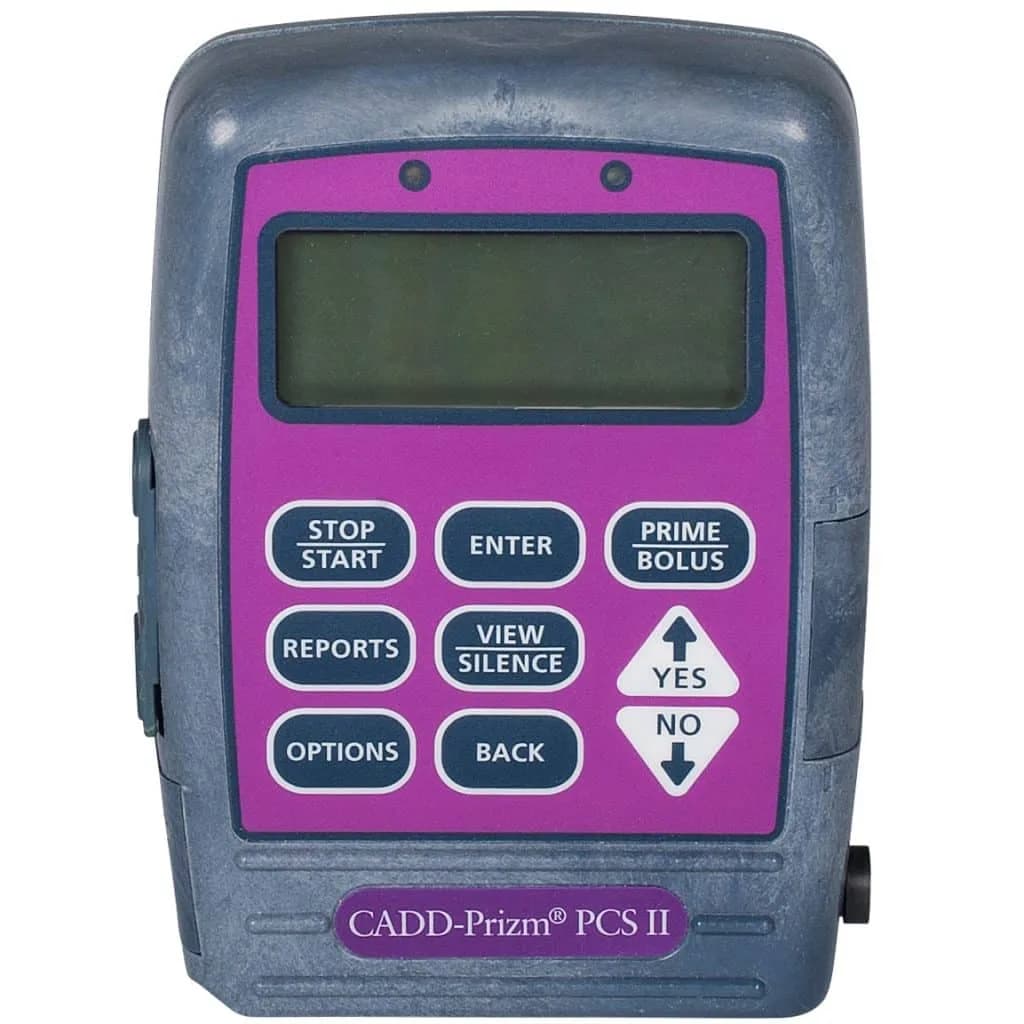

The Smiths Medical CADD Prizm PCS II 6101 is an ambulatory patient-controlled analgesia (PCA) infusion pump designed for portable pain management. It delivers medication via PCA, continuous, intermittent, or combination modes at flow rates from 0.1 to 250 mL/hr, depending on the selected delivery mode. The pump accommodates 50 mL, 100 mL, or 250 mL cassettes and displays real-time delivery information on a backlit LCD. Navigation and programming are accomplished via button controls. Power is provided by either a 9V battery or two AA alkaline batteries, offering up to 72 hours of operation per charge. The compact form factor (approximately 5.6 inches tall, 3.2 inches wide, and 1.6 inches deep) and weight of about 13 oz make it suitable for transport and ambulation.
Tech Info
- Pump Type: Ambulatory PCA infusion pump
- Delivery Modes: PCA, continuous, intermittent, or combinations
- Flow Rate Range: 0.1 to 250 mL/hr (mode-dependent)
- Reservoir Options: 50 mL, 100 mL, 250 mL cassettes
- Display: Backlit LCD with real-time delivery information
- Battery Options: 9V or two AA alkaline batteries
- Battery Life: Up to 72 hours (use-dependent)
- Dimensions: Approximately 5.6" H × 3.2" W × 1.6" D
- Weight: Approximately 13 oz (with batteries)
- Event Log Capacity: Up to 255 delivery and alarm events
- Alarms: Occlusion, low battery, end of infusion, system error
Common Problems
- Occlusion detected (high-pressure alarm triggered).
- Low battery warning.
- End-of-infusion signal.
- System error or fault condition.
- Incompatible or incorrectly installed cassette.
Specifications
- Depth
- 1.6 inches
- Width
- 3.2 inches
- Height
- 5.6 inches
- Weight
- 13 oz with batteries
- Display
- Backlit LCD
- Event Log
- Up to 255 events
- Pump Type
- Ambulatory PCA infusion pump
- Battery Life
- Up to 72 hours
- Cassette Sizes
- 50 mL, 100 mL, 250 mL
- Delivery Modes
- PCA, continuous, intermittent, combinations
- Battery Options
- 9V or two AA alkaline
- Flow Rate Range
- 0.1 to 250 mL/hr
