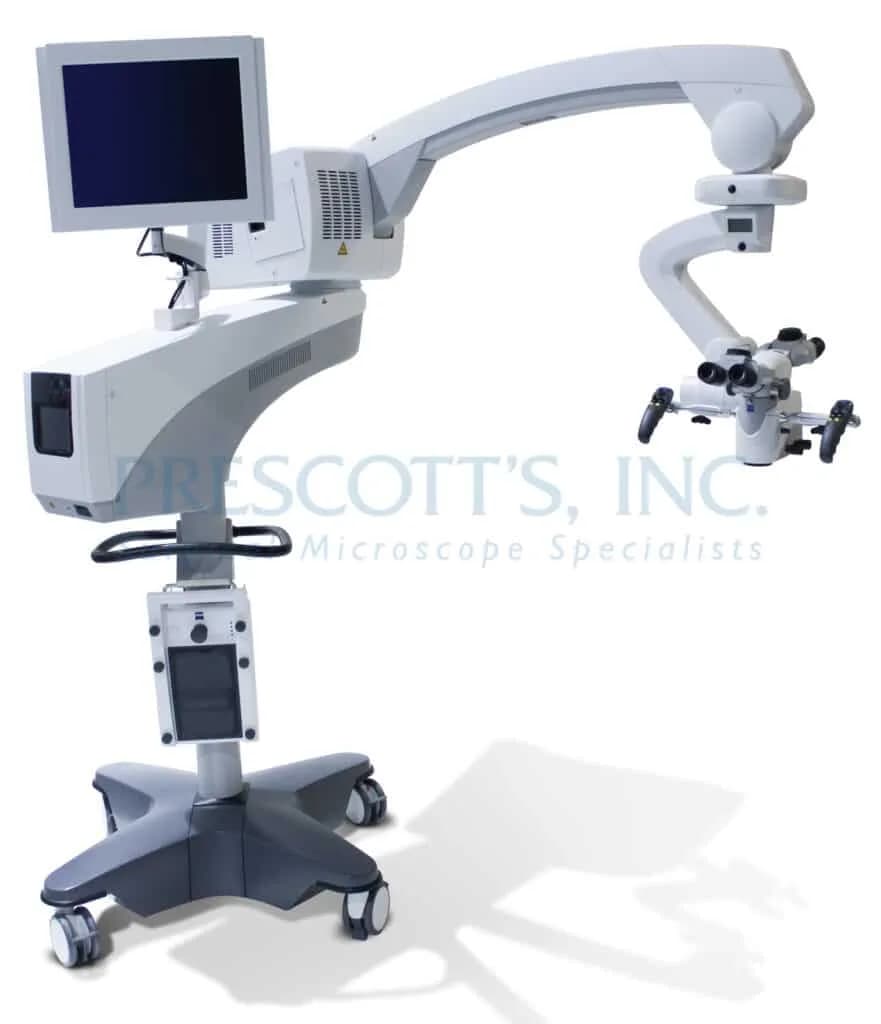

Zeiss OPMI Vario 700
Device✓ 1 in stock
The Zeiss OPMI Vario 700 is a motorized surgical microscope with a 1:6 zoom ratio, apochromatic optics, and a tiltable or foldable tube. It receives illumination from a Superlux Xenon source (180W or 300W) with automatic lamp exchange, and displays the surgical field through 10x …
Overview
The Zeiss OPMI Vario 700 is a motorized surgical microscope with a 1:6 zoom ratio, apochromatic optics, and a tiltable or foldable tube. It receives illumination from a Superlux Xenon source (180W or 300W) with automatic lamp exchange, and displays the surgical field through 10x or 12.5x widefield eyepieces. Working distance ranges from 200–500 mm. Navigation is controlled via a wireless waterproof foot switch, central touchscreen interface, and overhead display. Magnetic clutches lock all axes; an optional XY drive enables motorized stage movement.
Tech Info
- Optics: Motorized focus and zoom (1:6 ratio); apochromatic
- Eyepieces: 10x or 12.5x widefield
- Working Distance: 200–500 mm
- Illumination: Superlux 180W or 300W Xenon with automatic lamp exchange
- Tube Options: 180° tiltable or foldable (f170/f260) with PROMAG function
- Foot Control: Wireless, waterproof foot switch
- User Interface: Central touchscreen and overhead display
- Motion Control: Magnetic clutches on all axes; optional XY motorized drive
Specifications
- Tube Type
- 180° tiltable or foldable (f170/f260)
- Zoom Ratio
- 1:6
- Illumination
- Superlux 180W or 300W Xenon
- Working Distance
- 200–500 mm
- Eyepiece Magnification
- 10x or 12.5x
Vendor offers (1)
Compare by price, lead time, and warranty in the quote response.
- PurchaseIn stockPrice
Request quote
