1500 Series | VeeVo Wall Suction Regulator

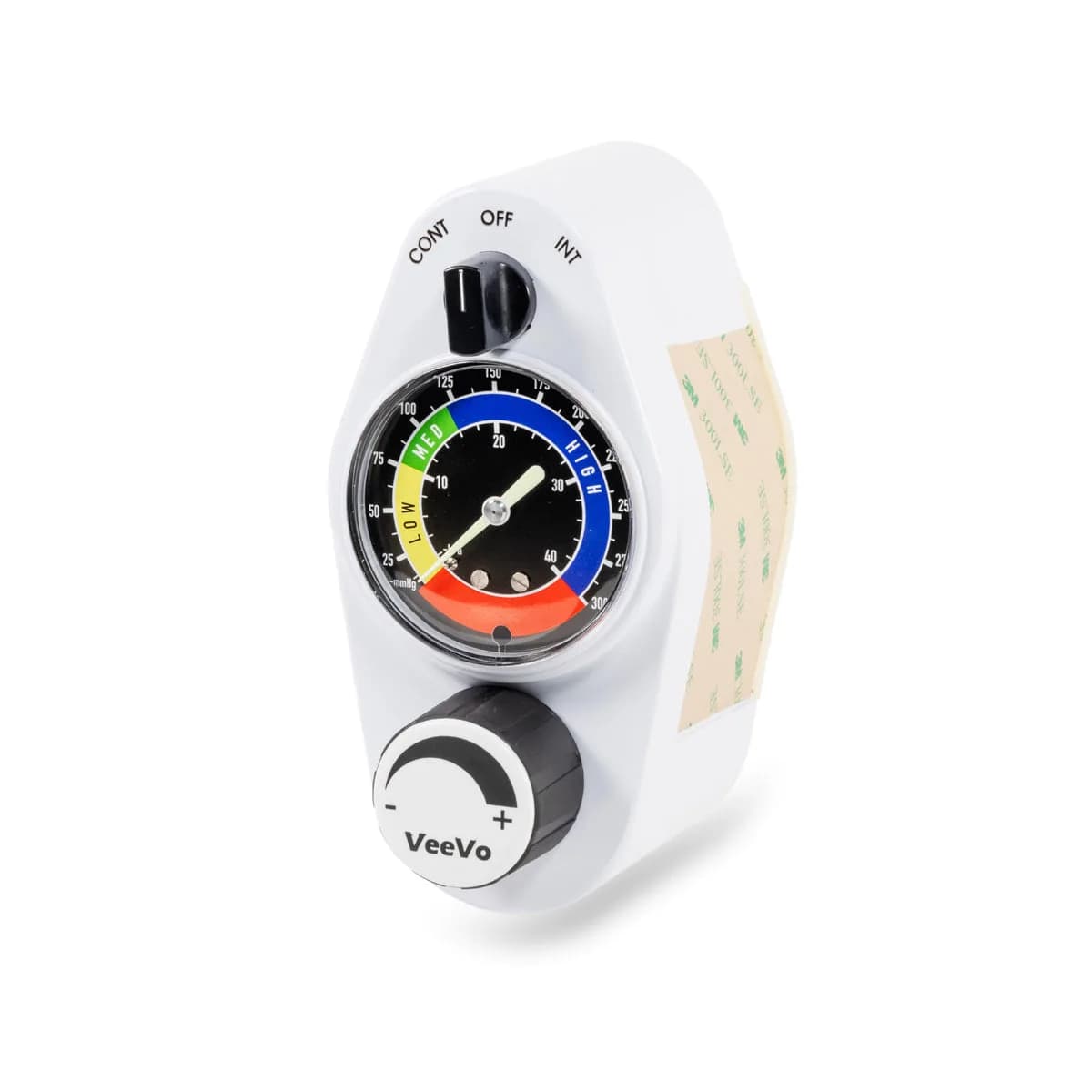

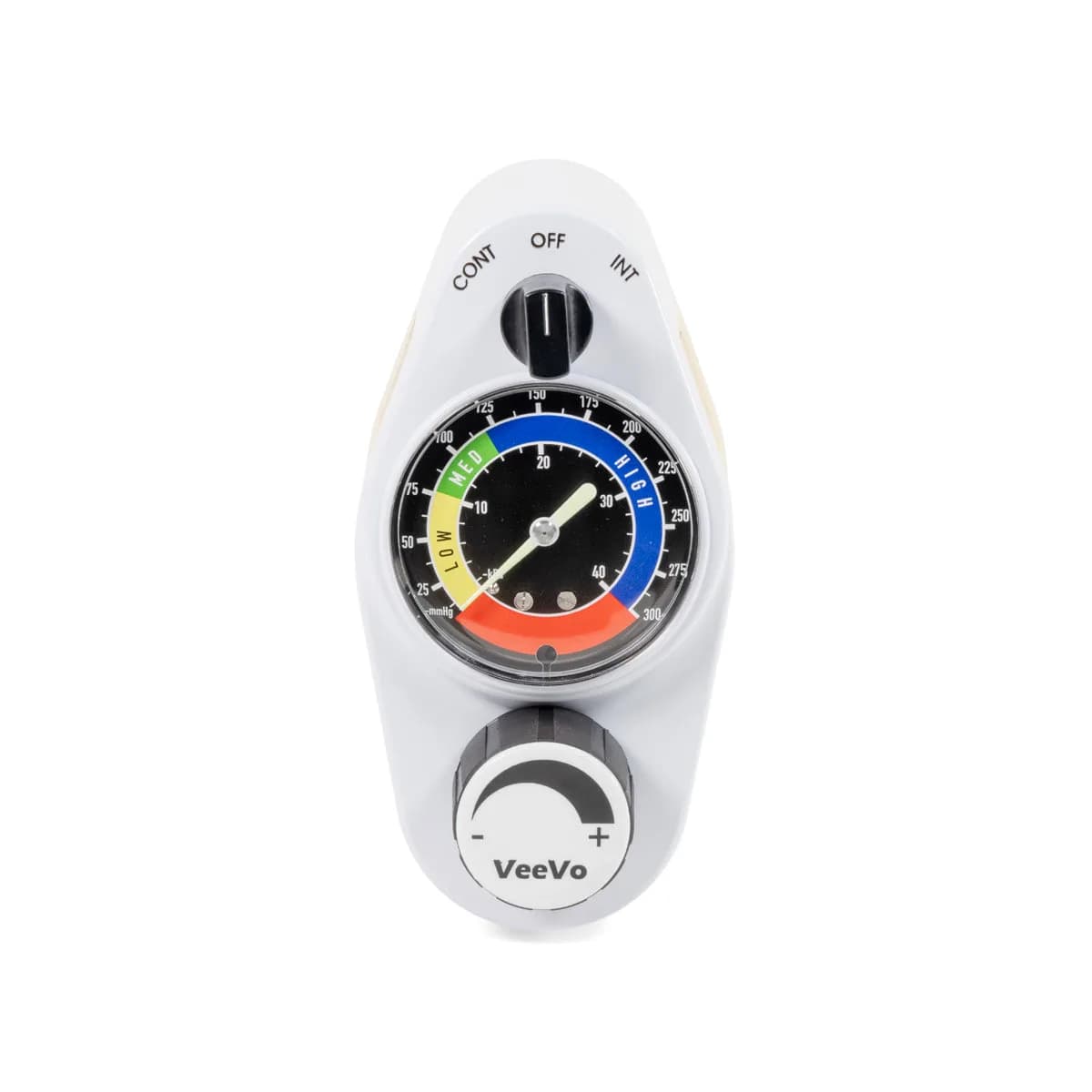

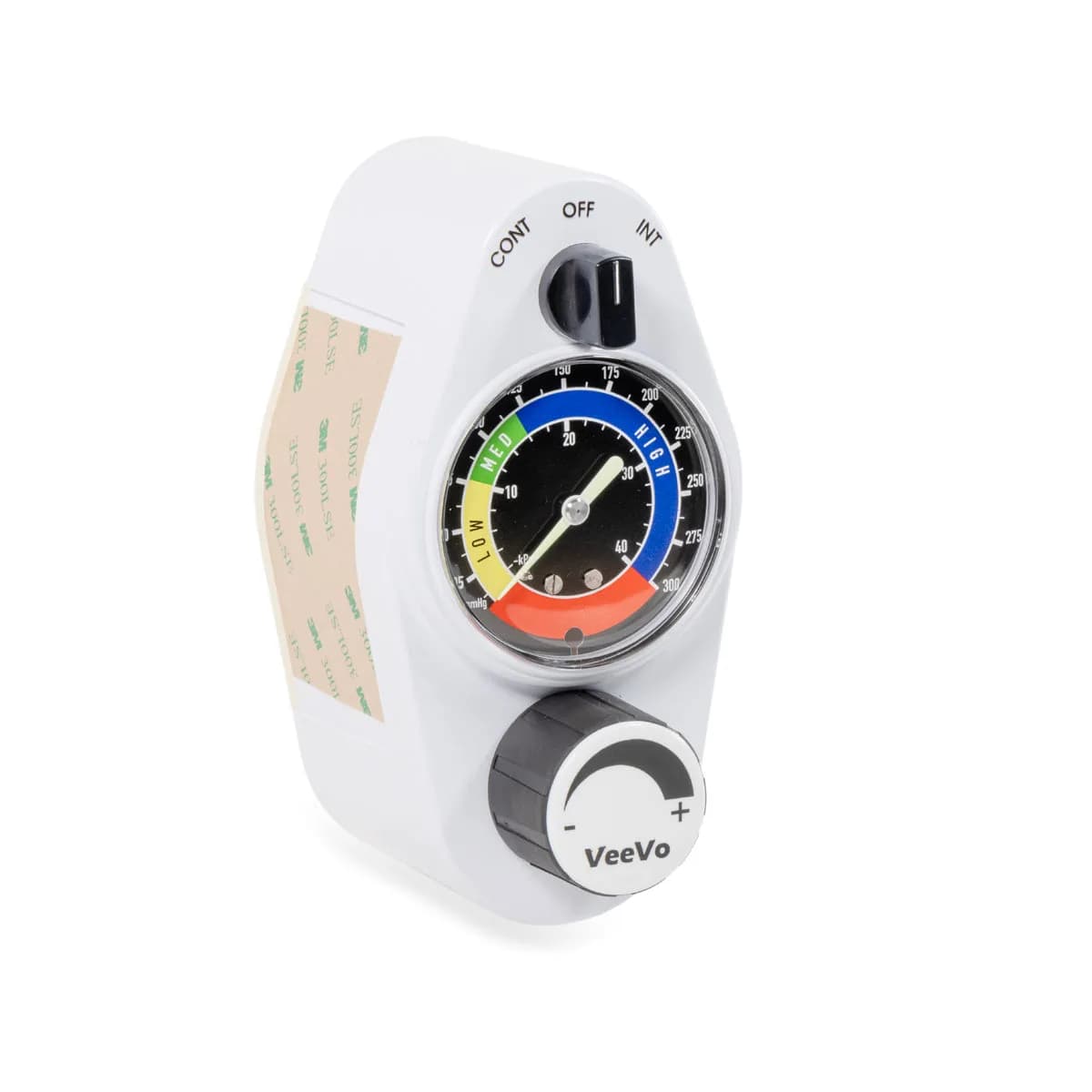

The VeeVo 1500 Series (model TWSA2) is a wall-mounted suction regulator that delivers continuous or intermittent vacuum to patient-evacuation lines. It connects to a facility wall-suction outlet and allows clinical staff to select operating mode and adjust vacuum pressure via two control knobs. The unit displays delivered pressure on a color-coded analog gauge. The mode selector knob switches between OFF, CONT (continuous regulated suction), and INT (intermittent regulated suction). The pressure adjustment knob controls vacuum level across a 0–300 mmHg range in both modes; clockwise rotation increases pressure, counter-clockwise decreases it. The analog gauge includes a luminescent dial and needle for visibility in low-light environments. - Vacuum range: 0–300 mmHg (both modes) - Dual-scale color-coded analog gauge - Luminescent dial and needle - Wall-mount configuration
