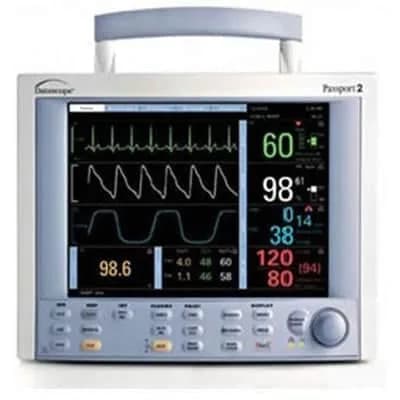

Datascope/Mindray Passport 2 Monitor
Model Number: 0998-00-0900-0331A, 0998-00-0170-0010A, 0998-00-0170-0006A, 0998-00-0170-0013A, 0998-00-0170-0014A, 0998-00-0170-0005A
Device✓ 1 in stock
The Datascope Passport 2 is a transport-rated patient monitor that receives vital-sign parameters via analog ECG and IBP inputs and displays up to six waveform traces on a 10.4-inch color TFT screen. The monitor stores up to 120 data points and includes configurable alarms with s…
Overview
The Datascope Passport 2 is a transport-rated patient monitor that receives vital-sign parameters via analog ECG and IBP inputs and displays up to six waveform traces on a 10.4-inch color TFT screen. The monitor stores up to 120 data points and includes configurable alarms with support for neonatal O₂-CRG trending. It connects to nurse call systems, barcode readers, and legacy equipment via ECG/IBP analog outputs, PCMCIA slots, and RS-232. Battery runtime is sized for transport use; configuration options affect overall weight (6.9–14 lb) and may include extended recording or wireless capability.
Tech Info
- Display: 10.4" / 10.5" color TFT, up to 6 waveform traces
- Dimensions: Approx. 8" × 12" × 10"
- Weight: 6.9–14 lb (depending on configuration)
- Battery: Rechargeable Li-ion, transport-rated runtime
- Data Storage: Up to 120 data points
- Alarms: Auto-configurable; supports neonatal O₂-CRG trends
- Inputs: ECG, IBP (analog)
- Outputs: ECG/IBP (analog)
- Connectivity: PCMCIA slots, RS-232, nurse call interface, barcode reader interface
Common Problems
- Power fails to apply or monitor does not boot.
- LCD display fails or image is degraded.
- Chassis or enclosure damage.
- NIBP measurement fails or produces no reading.
- Other parameter inputs (ECG, IBP, SpO2, temperature) fail to display or update.
Specifications
- Model
- 0998-00-0900-0331A, 0998-00-0170-0010A, 0998-00-0170-0006A, 0998-00-0170-0013A, 0998-00-0170-0014A, 0998-00-0170-0005A
- Inputs
- ECG, IBP (analog)
- Weight
- 6.9–14 lb
- Display
- 10.4" / 10.5" color TFT
- Outputs
- ECG/IBP (analog)
- Dimensions
- Approx. 8" × 12" × 10"
- Battery Type
- Rechargeable Li-ion
- Connectivity
- PCMCIA, RS-232, nurse call, barcode reader
- Data Storage
- Up to 120 data points
- Manufacturer
- Datascope
- Waveform Traces
- Up to 6
